BOYOU

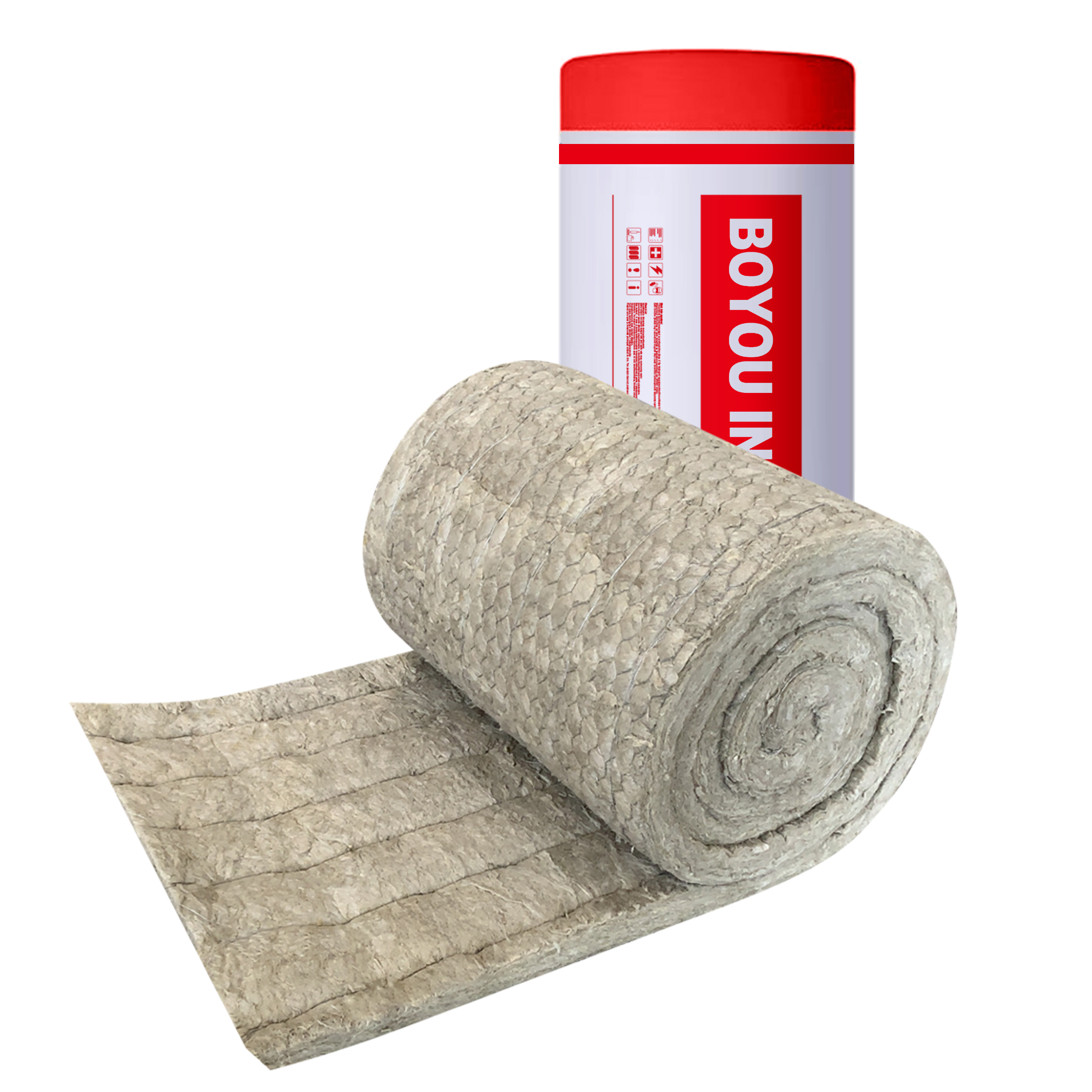

ASTM C592 Stone Mineral Rock Wool Roll Fiber Insulation 50mm Rock wool Blanket with Wire Mesh
stars, based on 0reviews
PRODUCT INFORMATION
BOYOU rock wook blanket is a flexible blanket designed for general insulation applications and is supplied in folded or roll form for ease of installation over large areas. It is manufactured in a variety of thicknesses, suitable for thermal insulation in residential, commercial and industrial buildings. It offers a wide range of multi purpose usage in pitch roofs, attics, ceilings, suspended ceilings and other constructions where no load-bearing insulation mats are required. It may be used as single-layer insulation for thermal insulation of external structures, such as in pitch roofs and inserted between rafters in attics.
AVAILABLE FORMS
Flexible Blanket
AVAILABLE SIZE
| Product Code | Density (kg/m³) |
Thickness (mm) |
Width (mm) |
Length (mm) |
Packing (pcs/PKG) |
PKG/40'HQ (No#) |
|
| BOYOU 4075 | 40 | 75 | 600-1200 | 5 | 1 | Loading Qty, Please consult |
|
| BOYOU 40100 | 40 | 100 | 600-1200 | 5 | 1 | ||
| BOYOU 5050 | 50 | 50 | 600-1200 | 5 | 1 | ||
| BOYOU 5075 | 50 | 75 | 600-1200 | 5 | 1 | ||
| BOYOU 50100 | 50 | 100 | 600-1200 | 3 | 1 | ||
| BOYOU 6050 | 60 | 50 | 600-1200 | 5 | 1 | ||
| BOYOU 6075 | 60 | 75 | 600-1200 | 5 | 1 | ||
| BOYOU 60100 | 60 | 100 | 600-1200 | 3 | 1 | ||
| BOYOU 8050 | 80 | 50 | 600-1200 | 3 | 1 | ||
| BOYOU 8075 | 80 | 75 | 600-1200 | 3 | 1 | ||
| BOYOU 10050 | 100 | 50 | 600-1200 | 3 | 1 |
Consult your local sales representative for other available sizes and specification.
PHYSICAL PROPERTIES OF BOYOU 8050
| Tested Content | Tested Method | Tested Method | |
| Density | 80kg/m³ | GB/T 5480.3 | |
| Thickness | 50mm | GB/T 5480.3 | |
| Thermal Conductivity (W/m·K) | 0.034 | ASTM C518 (C177) | |
| Average NRC | 1.05 | ASTM C423 | |
| Maximum Service Temperature | 750°C | GB/T 17430, GB50264 | |
| Recommended Service Temperature | 650°C | ASTM C411-05, ASTM C447-03, GB50264 | |
| Non-Combustibility | |||
| Flame Diffustivity | 50 | ASTM E84-10 | |
| Flame Propagation | 25 | ASTM E84-10 | |
| Fire Performance | Class A1 | GB 8624, EN13501-1, BS 476 Part4 | |
| Water Vapor Sorption (% by Weight) | ≤1% | ASTM C1104/1104M | |
| Water Vapor Sorption (% by Volume) | ≤1% | ASTM C1104/1104M | |
| Water Repellency (Option available) | >99% | GB/T 10299 |
AVAILABLE FACINGS
FSK, wire mesh facing
PACKAGING

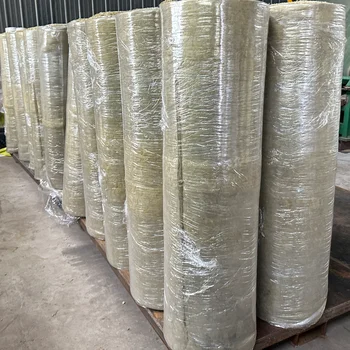

Rock wool roll is wrapped by a stretch film.
STORAGE AND TRANSPORT
Store insulation indoors. Store flat. Handle with care, which can be damaged if subject to sharp or heavy impact.
QUALITY MANAGEMENT AND SPECIFICATION COMPLIANCE
ISO 9001: 2008, ISO 14001:2004
GB/T 17430, GB50264, ASTM C411, ASTM C447-03, ASTM C423, GB50264
GB/T 17430, GB50264, ASTM C411, ASTM C447-03, ASTM C423, GB50264
FIRE PERFORMANCE
Classified as Euroclass A1 to STN EN 13501-1: 2007 and FM Certificate
FEATURES AND BENEFITS
• Natural inorganic material
• Class A fire resistance
• Great moisture resistance
• Excellent mod resistance, good chemical stability
• Aging resistance, and corrosion resistance
• Class A fire resistance
• Great moisture resistance
• Excellent mod resistance, good chemical stability
• Aging resistance, and corrosion resistance
| Keep Cool | Keep Warm | Fire Proof | Moisture Proof | Noise Control | Sustainbility | Save Cost | Health Safe |
APPLICATIONS
Rock wool blanket products are suitable for a wide range of applications including roof spaces in all types of building and as an overlay for ceiling tiles in suspended ceilings.
NOTICE
Safety first. Follow good safety/industrial hygiene practices during insulation. Wear appropriate personal protective equipment. Read SDS and literature before specification and insulation.
