BOYOU
Black color smooth acoustic fiberglass mineral wool sound absorption acoustic ceiling panel for office
PRODUCT INFORMATION

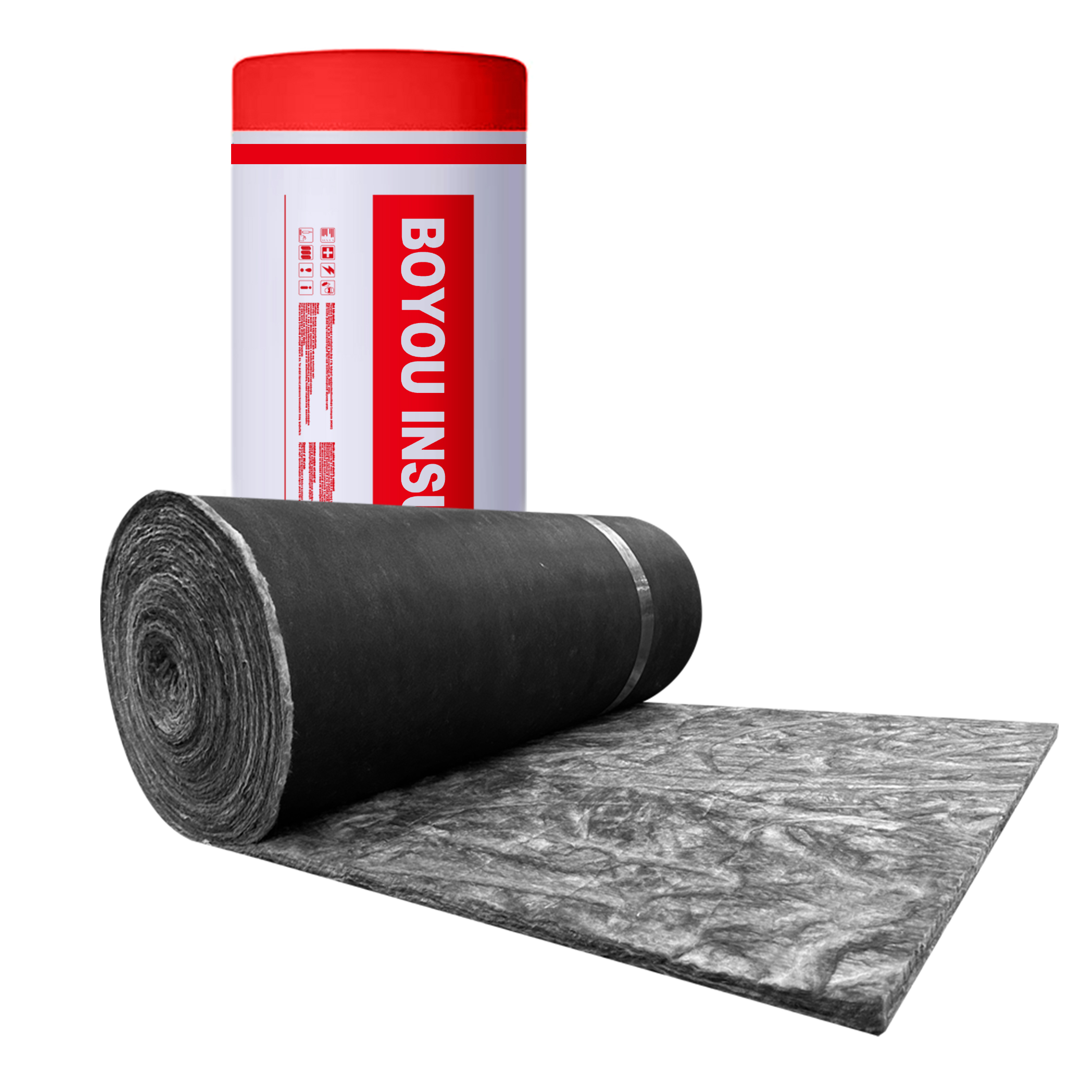

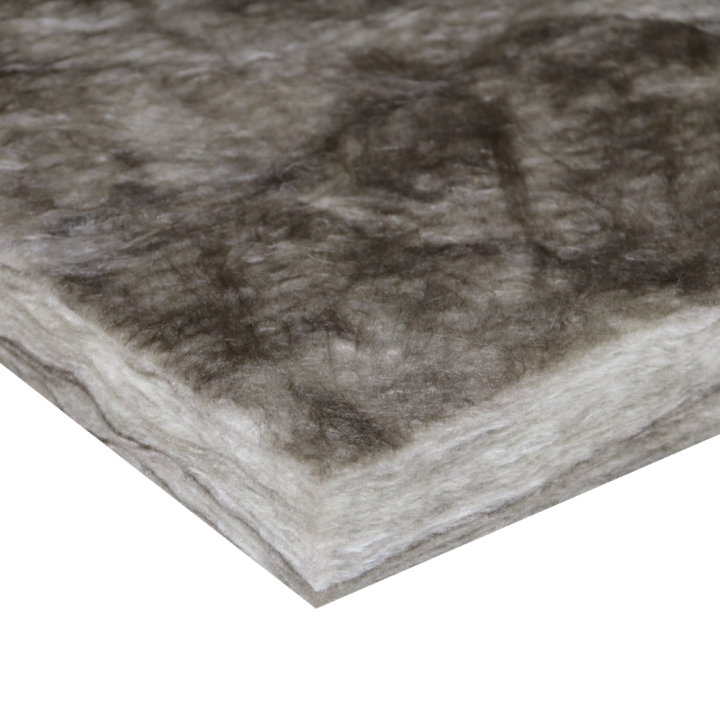

BOYOU Insulation metal building roofing Insulation glass wool blanket is consisted of long, resilient fibers bonded together with a thermosetting resin to form a lightweight, flexible glass wool blanket. The blankets can be supplied with a factory applied foil vapor barrier (FSK, Vinyl, Foil, WMP, and Kraft Facing) accordingly to project designs or customer's requirement.
AVAILABLE FORMS

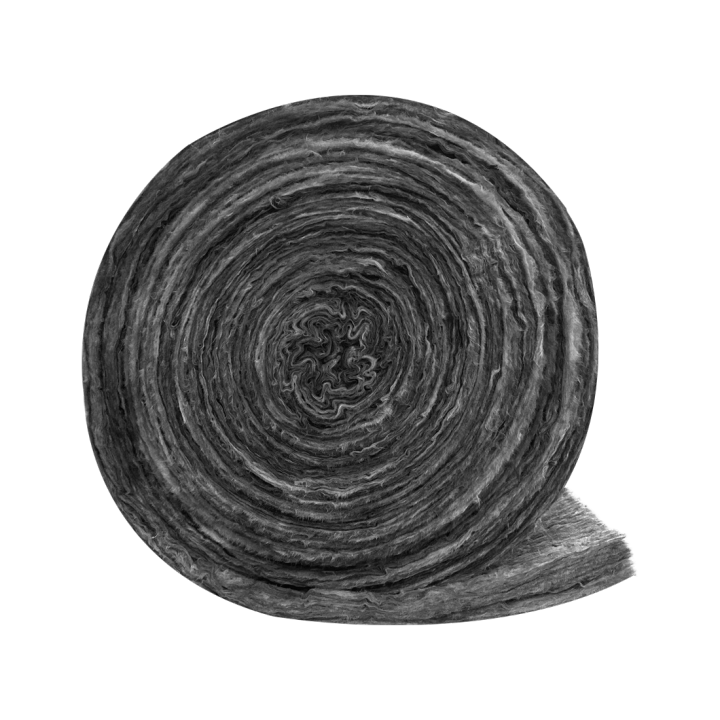

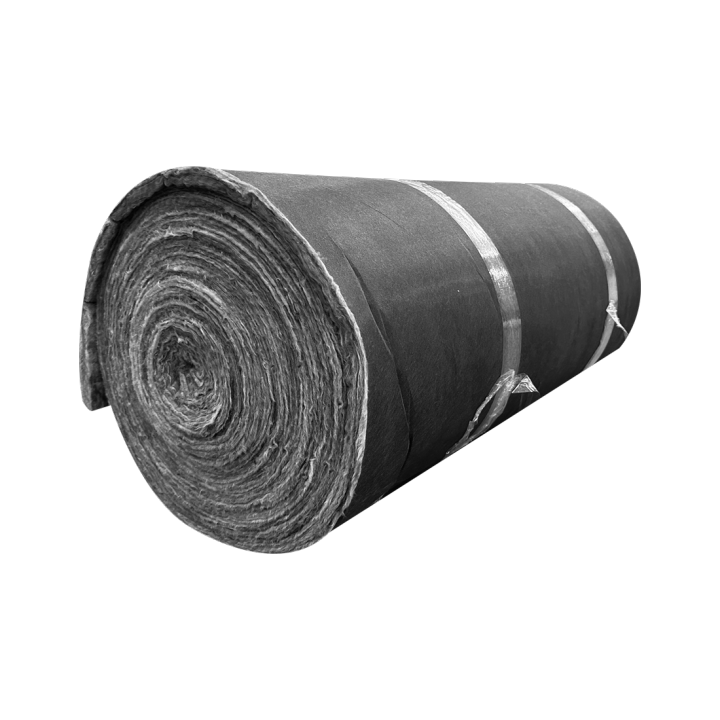

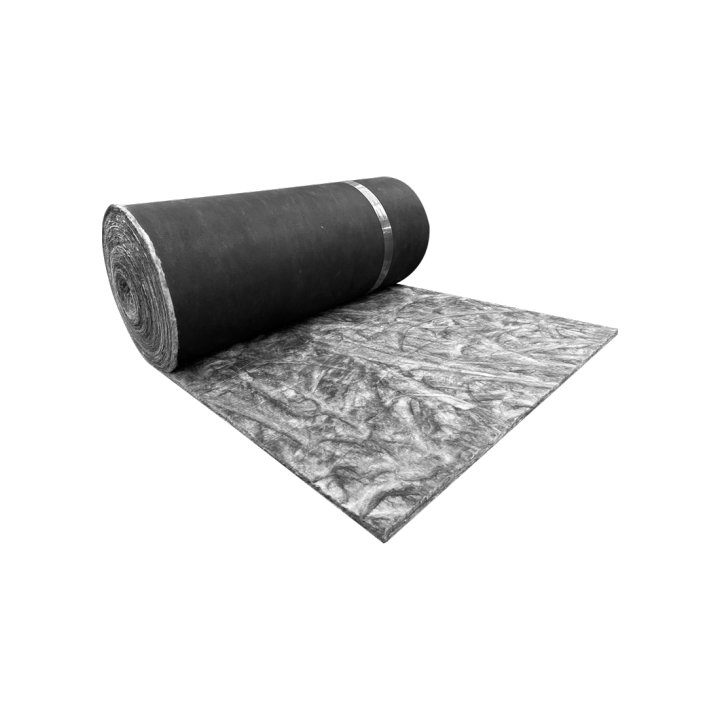

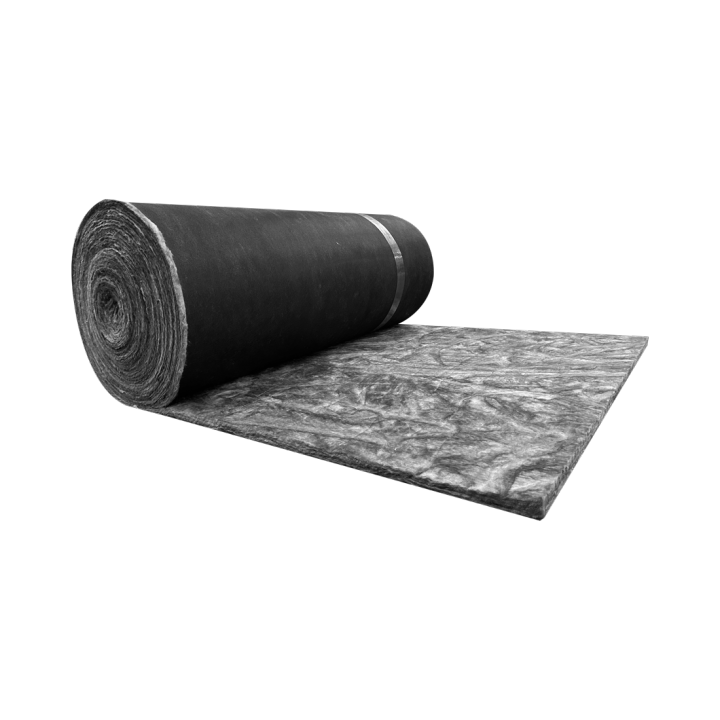

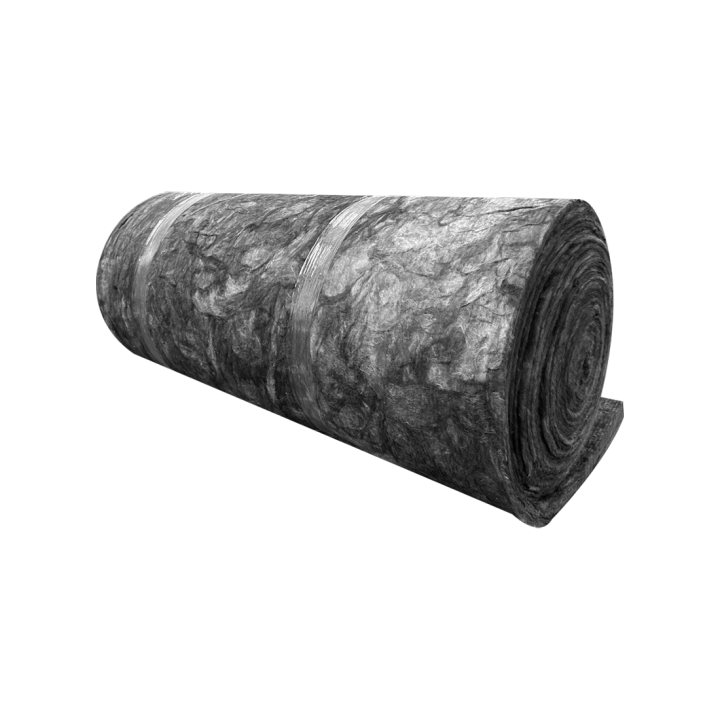

Flexible Blanket and Roll
AVAILABLE SIZE
Product Code | Density (kg/m³) |
Thickness (mm) |
Width (mm) |
Conductivty (W/m·K) |
R-Value (m²·K/W) |
Packing (pcs/PKG) |
PKG/40'HQ (No#) |
|
BOYOU 1250 | 12 | 50 | 1200 | 0.039 | 1.20 | 1 | Loading Qty, Please consult |
|
BOYOU 1275 | 12 | 75 | 1200 | 0.039 | 1.90 | 1 | ||
BOYOU 12100 | 12 | 100 | 1200 | 0.039 | 2.50 | 1 | ||
BOYOU 12150 | 12 | 150 | 1200 | 0.039 | 3.80 | 1 | ||
BOYOU 12200 | 12 | 200 | 1200 | 0.039 | 5.00 | 1 | ||
BOYOU 1650 | 16 | 50 | 1200 | 0.038 | 1.30 | 1 | ||
BOYOU 1675 | 16 | 75 | 1200 | 0.038 | 1.90 | 1 | ||
BOYOU 16100 | 16 | 100 | 1200 | 0.038 | 2.60 | 1 | ||
BOYOU 2450 | 24 | 50 | 1200 | 0.035 | 1.40 | 1 | ||
BOYOU 2475 | 24 | 75 | 1200 | 0.035 | 2.10 | 1 | ||
BOYOU 24100 | 24 | 100 | 1200 | 0.035 | 2.80 | 1 |
Conductivity Value tested under temperature in 23°C
Consult your local sales representative for other available sizes and specification.
PHYSICAL PROPERTIES OF BOYOU 1650
Tested Content | Tested Method | Tested Value | |
Density | ASTM C612 | 16kgs/m³ | |
Thickness | GB/T 17795-2008 | 50mm | |
Average diameter of fibers | GB/T 17795-2008 | 6.8μm | |
Coefficient of Heat Conductivity | EN12667 | 0.038W/m·K | |
Thermal Resistance | ASTM C653 | 1.30m²·K/W | |
Average NRC | EN ISO 354 | 1.00 | |
Maximum Service Temperature | ASTM C411 | 170°C | |
Corrosion Resistance | ASTM C665 | NO Chemical Reaction | |
Mold Resistance | ASTM C665 | Mildew proof | |
Moisture Absorption | ASTM C1104 | Less 3% by weight | |
Humidity veneration Rate | ASTM E96 | Max 0.013g/24Hours·m² | |
Non-Combustibility | ASTM E84 | Flame Propagation: 25; Flame Diffustivity: 50 |
AVAILABLE FACINGS
FSK, Vinyl, Foil, WMP, and Kraft Facing is available accordingly to project design.
PACKAGING
Glass wool roll is packed by vaccumed packing. Inner packing is PVC bag, Outside packing is woven fabric bag. It will save transportation cost and save storage space.
STORAGE AND TRANSPORT
Store insulation indoors. Store product under cover and in dry conditions. Handle with care, Products will be damaged if subject to sharp or heavy impact.
QUALITY MANAGEMENT AND SPECIFICATION COMPLIANCE
ISO 9001: 2008, ISO 14001:2004
GB/T17795-2008, EN ISO 354, EN12667, ASTM C653, ASTM C665
With CE Certificate according to standard EN 13162:2008
GB/T17795-2008, EN ISO 354, EN12667, ASTM C653, ASTM C665
With CE Certificate according to standard EN 13162:2008
FIRE PERFORMANCE
Classified as Euroclass A1 to STN EN 13501-1: 2007, and GB/T5464-2010, GB/T14402-2007
FEATURES AND BENEFITS
• Improve the energy efficiency of the building
• Reduce transmission of exterior sound to the interior of the building
• Absorb reverberating sounds within the building
• Provide thermal efficiency
• Keep the building warmer in winter and cooler in summer
• Reduce transmission of exterior sound to the interior of the building
• Absorb reverberating sounds within the building
• Provide thermal efficiency
• Keep the building warmer in winter and cooler in summer
Keep Cool | Keep Warm | Fire Proof | Moisture Proof | Noise Control | Sustainbility | Save Cost | Health Safe |
APPLICATIONS
Metal Building Insulation glass wool blanket is designed for use under any roof system supported on purlins with either metal or fibrous claddings, to provide thermal control within the building. The blanket also be used as additional insulation to fill voids in walls and roofs of metal buildings.
NOTICE
Safety first. Follow good safety/industrial hygiene practices during insulation. Wear appropriate personal protective equipment. Read SDS and literature before specification and insulation.
STANDARD & CERTIFICATE APPROVED PRODUCT
