factory price thermal insulation fireproofing external wall insulation 80kg/m3 rock stone mineral wool board slab sheet sale
PRODUCT INFORMATION
BOYOU rock wool board is a lightweight, semi-rigid or rigid stone wool insulation board designed specifically for use in curtain wall systems, and is best suited for backpan or mechanical fastening applications. It offers a variety of curtain wall specifications.
It is also available with or without reinforced foil facing.
It is also available with or without reinforced foil facing.
AVAILABLE FORMS

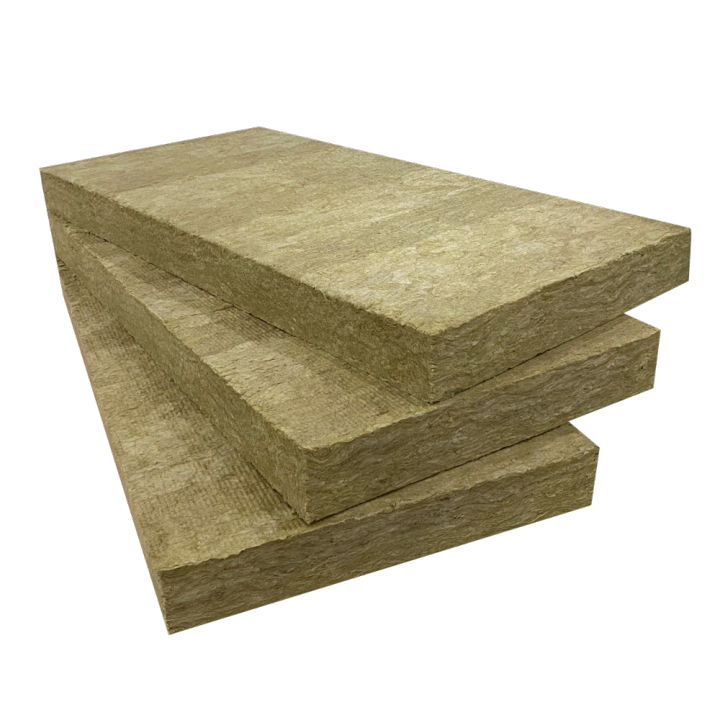

Semi-Rigid and Rigid Penel
AVAILABLE SIZE
| Product Code | Density (kg/m³) |
Thickness (mm) |
Width (mm) |
Length (mm) |
Packing (pcs/PKG) |
PKG/40'HQ (No#) |
|
| BOYOU 5050-200 | 50 | 50-200 | 600 | 1200 | 2-9 | Loading Qty, Please consult |
|
| BOYOU 6020-180 | 60 | 50-180 | 600 | 1200 | 3-9 | ||
| BOYOU 8040-180 | 80 | 40-180 | 600 | 1200 | 3-10 | ||
| BOYOU 10030-150 | 100 | 30-150 | 600 | 1200 | 3-10 | ||
| BOYOU 12030-150 | 120 | 30-150 | 600 | 1200 | 3-10 | ||
| BOYOU 15030-100 | 150 | 30-100 | 600 | 1200 | 3-10 | ||
| BOYOU 20025-50 | 200 | 25-50 | 600 | 1200 | 4-8 |
Consult your local sales representative for other available sizes and specification.
PHYSICAL PROPERTIES OF BOYOU 10050
| Tested Content | Tested Method | Tested Method | |
| Density | 100kg/m³ | GB/T 5480.3 | |
| Thickness | 50mm | GB/T 5480.3 | |
| Thermal Conductivity (W/m·K) | 0.034 | ASTM C518 (C177) | |
| Average NRC | 1.05 | ASTM C423 | |
| Maximum Service Temperature | 750°C | GB/T 17430, GB50264 | |
| Recommended Service Temperature | 650°C | ASTM C411-05, ASTM C447-03, GB50264 | |
| Compression Strength (kPa) | 140 | EN 826 | |
| Tensile Strength (kPa) | 215 | EN 1607 | |
| Shear Strength (kPa) | 65 | EN 12090 | |
| Point Load Strength (Deform 5%) (kPa) | 800 | EN 1607 | |
| Non-Combustibility | |||
| Flame Diffustivity | 50 | ASTM E84-10 | |
| Flame Propagation | 25 | ASTM E84-10 | |
| Fire Performance | Class A1 | GB 8624, EN13501-1, BS 476 Part4 | |
| Water Vapor Sorption (% by Weight) | ≤1% | ASTM C1104/1104M | |
| Water Vapor Sorption (% by Volume) | ≤1% | ASTM C1104/1104M | |

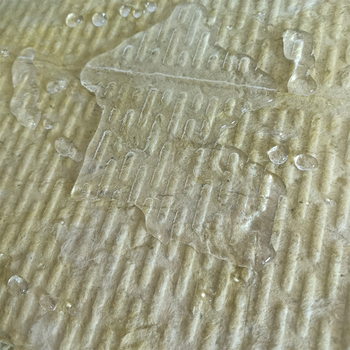

| Water Repellency (Option available) | >99% | GB/T 10299 |
SOUND ABSORPTION
| Thickness(mm) | 125 Hz | 250 Hz | 500 Hz | 1000 Hz | 2000 Hz | 4000 Hz | NRC | |
| BOYOU 10050 | 0.50 | 0.70 | 0.85 | 0.90 | 0.96 | 1.01 | 0.85 | |
| BOYOU 10060 | 0.55 | 0.76 | 0.95 | 1.00 | 1.00 | 1.05 | 0.89 | |
| BOYOU 10080 | 0.55 | 0.76 | 0.95 | 1.00 | 1.00 | 1.05 | 0.89 | |
| BOYOU 100100 | 0.20 | 0.20 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | |
| BOYOU 100120 | 0.20 | 0.20 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | |
| BOYOU 100150 | 0.20 | 0.20 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | |
| BOYOU 100200 | 0.20 | 0.20 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
AVAILABLE FACINGS
Reinforced foil facings

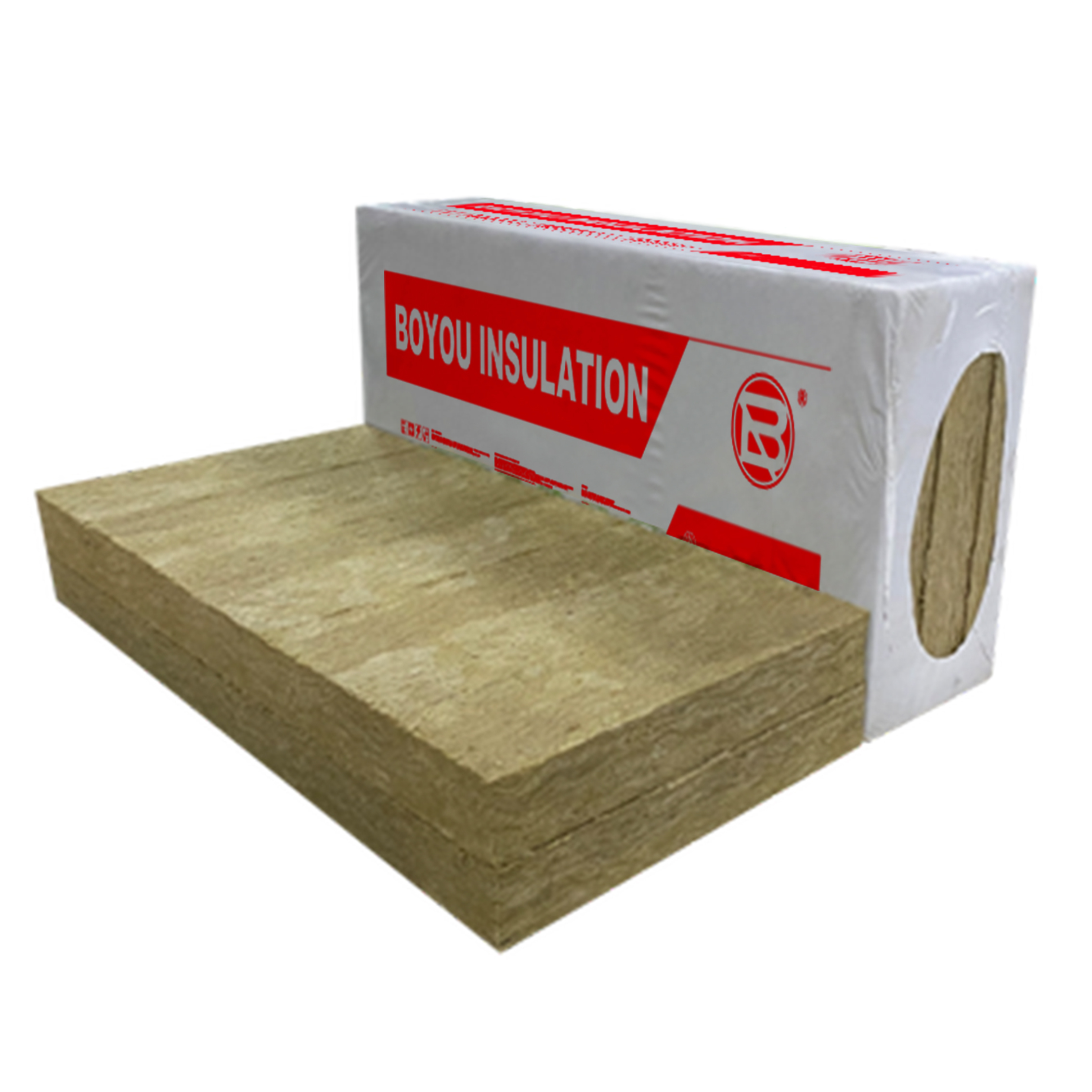

PACKAGING
Rock wool board is wrapped by shrink film, packed by pallet. It's easy to load and un-load with forklift to save labor cost.
STORAGE AND TRANSPORT
Store flat. Handle with care, especially on the edges and corners, which can be damaged if subject to sharp or heavy impact.
QUALITY MANAGEMENT AND SPECIFICATION COMPLIANCE
ISO 9001: 2008, ISO 14001:2004
GB/T 17430, GB50264, ASTM C411, ASTM C447-03, ASTM C423, GB50264
GB/T 17430, GB50264, ASTM C411, ASTM C447-03, ASTM C423, GB50264

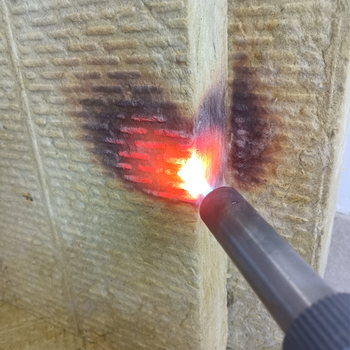

FIRE PERFORMANCE
Classified as Euroclass A1 to STN EN 13501-1: 2007 and FM Certificate
FEATURES AND BENEFITS
• Natural inorganic material
• Class A fire resistance
• Great moisture resistance
• Excellent mod resistance, good chemical stability
• Aging resistance, and corrosion resistance
• Class A fire resistance
• Great moisture resistance
• Excellent mod resistance, good chemical stability
• Aging resistance, and corrosion resistance
| Keep Cool | Keep Warm | Fire Proof | Moisture Proof | Noise Control | Sustainbility | Save Cost | Health Safe |
APPLICATIONS

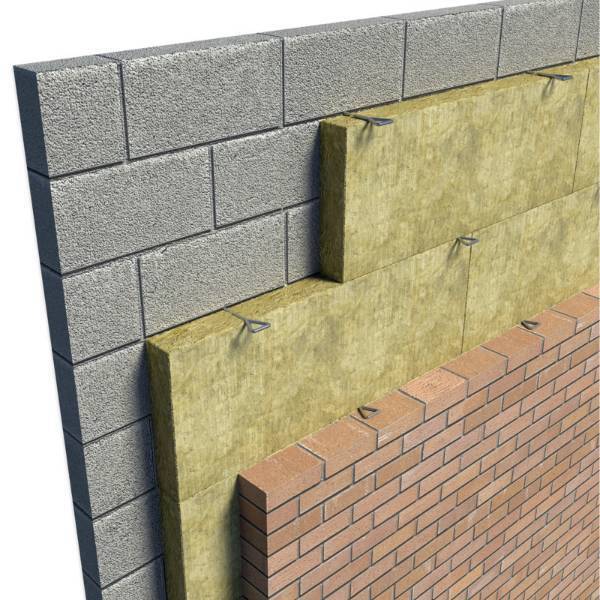

Certain wall rock wool are widely used in multi-unit residential blocks, office blocks, hospitals, schools, hotels and multiuse developments.
NOTICE
Safety first. Follow good safety/industrial hygiene practices during insulation. Wear appropriate personal protective equipment. Read SDS and literature before specification and insulation.
STANDARD & CERTIFICATE APPROVED PRODUCT
